Plain round Dowel Bars produced from mild steel, can be supplied in various diameters either with sawn end or cropped to specific lengths.

Stainless Steel Bars are also available. Contact us for details.

   Manufactured from high grade flexible PVC, giving a tough and durable plastic sleeve to be used with Dowel Bars.

   Manufactured from rigid PVC tube with cork fixed into one end acting as compression filler, which allows for expansion of dowel bars in construction joints.

   A blend of petroleum, bitumen, plasticiser and solvents for use on dowel bars, giving complete bond breakage after casting. D-Bond is manufactured to D.O.E Specification for Road and Bridge Works, Clause 2605*, which requires pull-out tests on specific sample sizes to a maximum of 0.14 N/m2 (20 lb/sq.in.) bond stress, measure seven days after casting.

* HMSO London 1976.

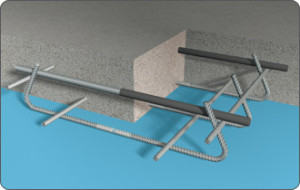

   Manufactured from B283 fabric, Supplied in 1.2mtr long half sections, which are placed either side of the joint. Can be used in both road and floor slab construction. Height shown is from the base of the cage to the underside of the dowel bar.

Dowel Bar and accessories supplied separately.

   Manufactured from B283 fabric, Supplied in 1.2mtr long half sections, which are placed either side of the joint. Can be used in both road and floor slab construction. Height shows is from the base of the cage to the underside of the dowel bar.

Dowel Bar and accessories supplied separately.
